  1. Interface and gestures

Interface

PreviousOverviewNextGestures and quick actions

Last updated 4 months ago

Was this helpful?

The interface of Pixquare contains many areas. A few of them are permanently visible on the screen, however, to give us a clean workspace, the majority of them are either collapsible or completely hidden when not used.

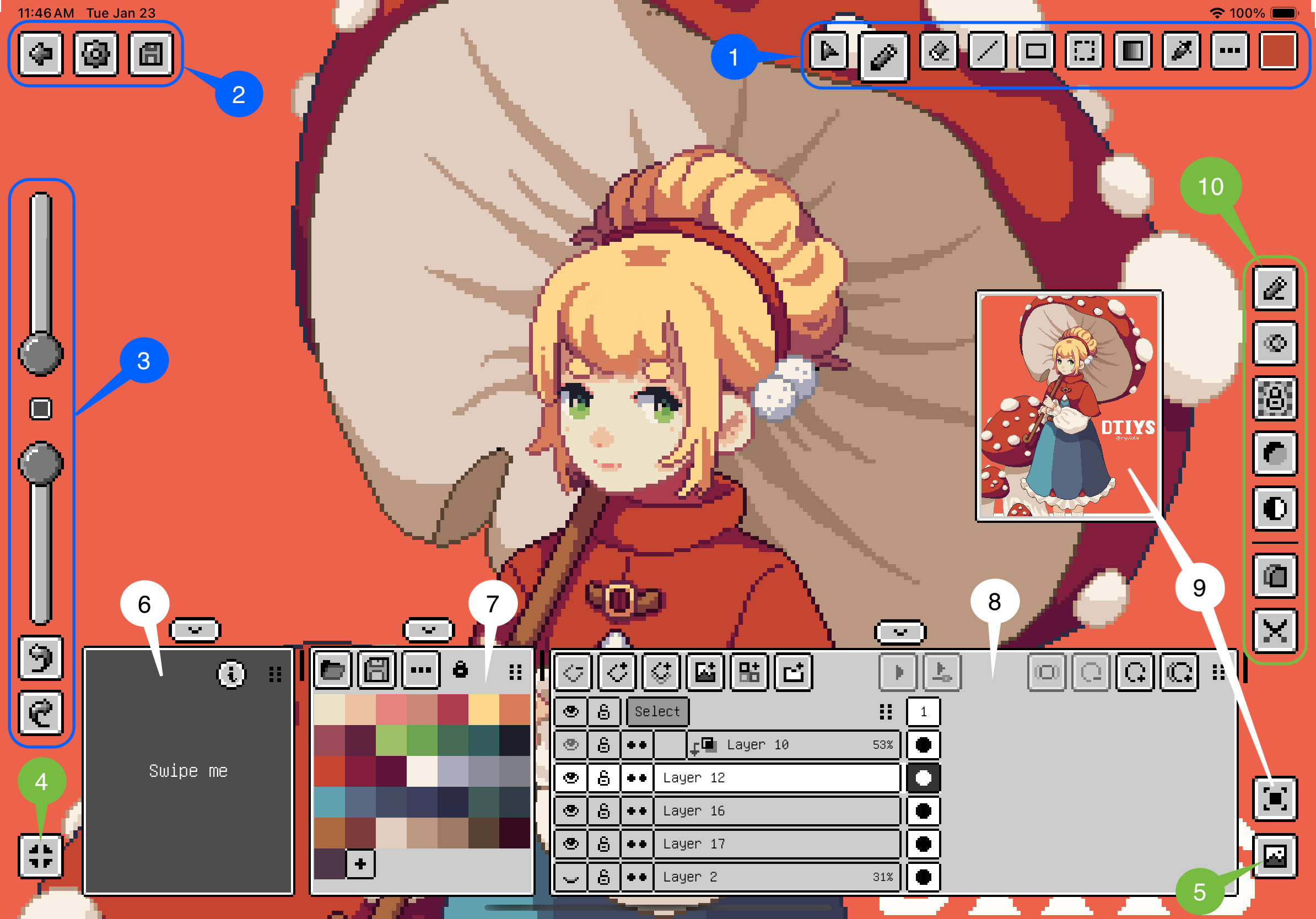

Those in blue are permanent elements of the UI, the white ones can be collapsed, and the green components can be hidden if not used.

A lot of UI elements in Pixquare can be resized and dragged around so that we can organize the workspace however we see fit. Look for the drag icon and the resize icon .

1. Toolbox

2. Settings

This is only the entry for the settings panel. It also has the back button and save button (only needed if auto-save is not enabled)

3. Size and opacity sliders

Tools like brush, eraser, line, and shape can have adjustable stroke size and opacity, so these sliders allow us to change those settings.

The little button in the middle is to activate the quick eye dropper.

4. Symmetry tool

Pixquare supports symmetry (or mirroring) on vertical and horizontal axes. When expanded, we use this window to manage the axes (add, remove, change coordinates or color). This can be hidden in the settings.

5. Reference images

Sometimes we will need to constantly look at some images as reference, so Pixquare allows us to import them as floating windows right inside its UI. Expand this component to manage the images.

6. Gesture pad

Working with an iPad means that a lot of time, we won't have access to a keyboard. To compensate for that limitation, Pixquare offers the Gesture Pad to somewhat substitute the keyboard shortcuts. We can customize what each gesture does.

7. Color palette

Color/palette management is super easy in Pixquare with this component. We can add/remove/reorganize colors, all in this little panel. We can also import palettes from a variety of sources like Lospec, images, files, etc. Pixquare also allows us to generate a ramp of colors to add to our palette.

8. Timeline/layer panel

Pixquare is ideal for both static artwork as well as animation, that's why it combines the layers and animation frames into 1 panel. Layer and animation management are all done in this panel.

9. Preview

Oftentimes, we'll want to quickly glance at the artwork in a smaller size to get how it looks overall. We can expand this window to do that.

In this window, we can zoom and pan the preview. The window itself can be resized and dragged around.

Tapping on the preview will navigate the main canvas to that point.

Preview also has an option that keeps the center of itself and the main canvas in sync.

Preview will play the animation along with the main canvas, but if we tap the Play button of the preview, it will play the animation independently from the main canvas.

10. Contextual menu

Depending on what's happening on the canvas, this menu will show/hide automatically. The intention of this dynamic design is to let users know exactly what they can do with the current state of the canvas without needing to do anything and the fact that it will only show up when needed helps keep the workspace clean and clustered-free.

We'll go into more detail about this menu in several sections for specific parts of the app.

Here is the container of all the tools we can use in Pixquare: Move, Brush, Eraser, Line, Shape, Selection, Color Bucket, Eye Dropper, Additional Tools, and Color Picker. Some of them can be activated using .

It also houses the undo/redo buttons (which can be done with )

Depending on whether you have enabled or not, the contextual menu will show up on the left or right edge of the screen.

Read more about tools >
Read more about settings >
Read more about symmetry tool >
Read more about reference images >
Read more about palette management >
Read more about layers/frames >
left-hand mode
quick actions
gestures
